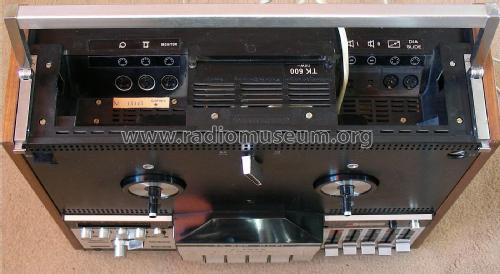

TK600d HiFi-Stereo
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1972–1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 28867
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 117; 127; 150; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TK600d HiFi-Stereo - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 420 x 190 x 370 mm / 16.5 x 7.5 x 14.6 inch
- Notes
- Grundig Tonbandgerät TK600d HiFi-Stereo.
Vierspur-HiFi-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm; Übetragungsbereich bei 19 cm/s: 30-18000 Hz; Stereo-NF-Verstärker mit 2 Endstufen je 10 W (Sinus).
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
