• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138977

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

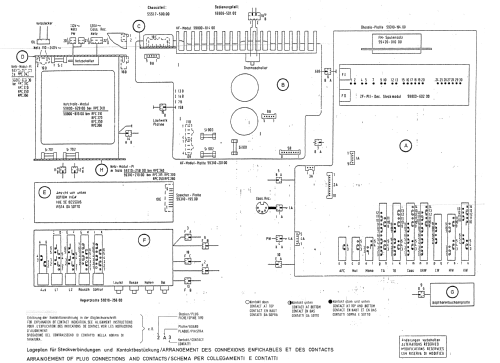

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player + Cassette Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi-Studio RPC 320 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 190 x 420 mm / 26.4 x 7.5 x 16.5 inch

• Notes
• Plattenspieler:Dual 1237A
  Cassettendeck: CN 510 HiFi
  Gehäuse: metall-finish.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Otto Kippes † 24.4.17. See "Data change" for further contributors.
