• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238487

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SC668 2SC930 2SC930 2SB171 2SB186 2SB22 2SB22 LA1201

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

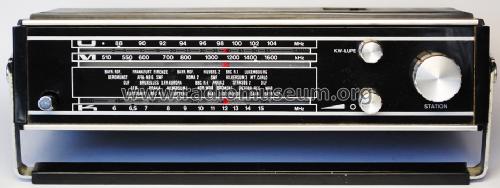

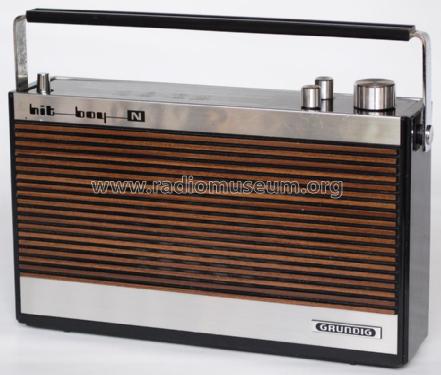

• Model: Hit-Boy N210a - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 240 x 145 x 60 mm / 9.4 x 5.7 x 2.4 inch

• Notes

• Abweichend vom Grundig Modell - Hit-Boy N210 (Baujahr 1970) zeigt dieses Modell
  Hit-Boy N210a (Baujahr 1971) als "Nachfolger" nur geringe technische Änderungen,
  (z.B. bei der Bestückung einzelner Transistor-Typen, lt. Ersatzteil-Listen beider Geräte).

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
