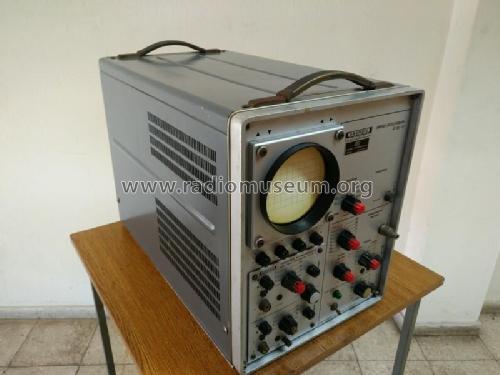

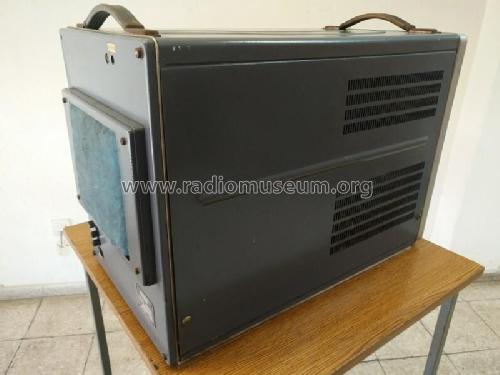

Impuls-Messoszillograph JO 20/13

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 107461

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

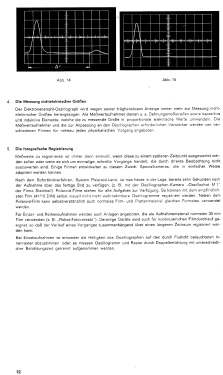

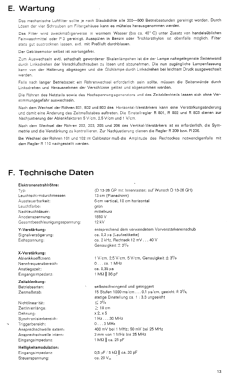

• Picture

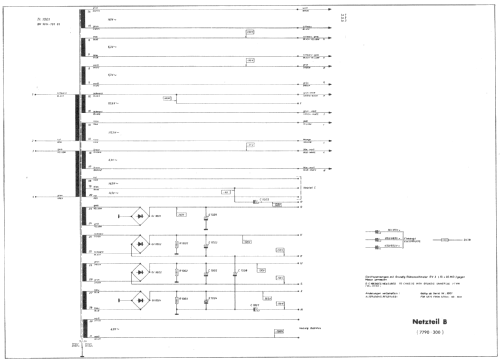

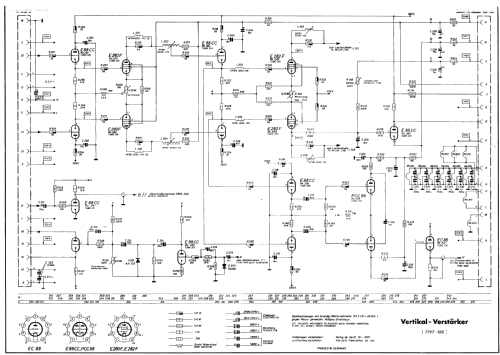

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

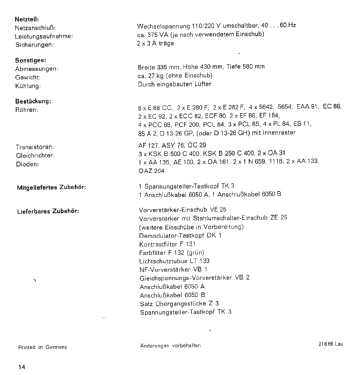

• Number of Tubes
• 43

• Valves / Tubes
• E88CC E280F E282F 5642 5645 EAA91 EC88 EC92 ECC82 ECF80 EF86 EF184 PCC88 PCF200 PCL84 PCL85 PL84 ES11 85A2 D13-26GP

• Number of Transistors
• 3

• Semiconductors
• AF127 ASY76 OC29 AA135 AE100 OA161 1N659 AA133 OAZ204

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Impuls-Messoszillograph JO 20/13 - Grundig Radio-Vertrieb, RVF,

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 335 x 430 x 580 mm / 13.2 x 16.9 x 22.8 inch

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Price in first year of sale
• 75,748.00 BFr

• Mentioned in
• -- Original prospect or advert ((D) "Grundig Technische Informationen" Werbeanzeige in Dezember 1965)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
