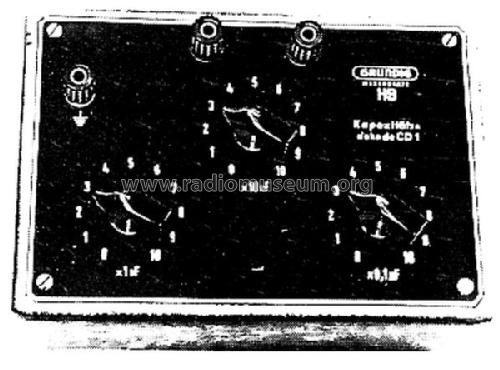

Kapazitätsdekade CD1

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1955 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 103998
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Kapazitätsdekade CD1 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 190 x 90 x 130 mm / 7.5 x 3.5 x 5.1 inch
  • Notes
  • 3 Kapazitätsbereiche:
    0...10 nF (in 1-nF-Stufen);
    0...100 nF (in 10-nF-Stufen);
    0...1 µF (in 0,1-µF-Stufen);
    max. Betriebsspannung 500 V.
    Hersteller ist Hartmann & Braun.
  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Price in first year of sale
  • 138.00 DM
