Klangstrahler 1 1965
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1965–1967
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 98869
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
aus Grundig-Katalog 1967
Q: Katalog Rundfunk-Großhandel 1965-66
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Klangstrahler 1 [1965] - Grundig Radio-Vertrieb, RVF,
- Dimensions (WHD)
- 270 x 170 x 105 mm / 10.6 x 6.7 x 4.1 inch
- Notes

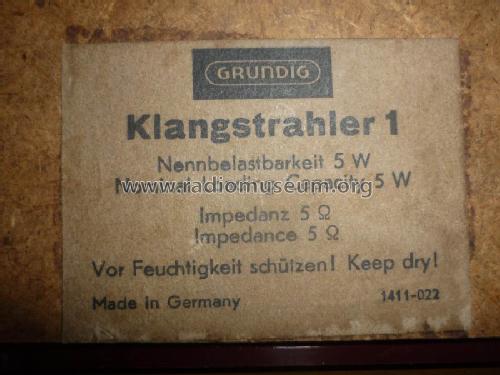

- Impedanz 5 Ohm, Frequenzbereich 80 Hz bis 10 kHz, Lsp. 239 × 152 mm. Varianten: beige, staubgrau, dunkelrot.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Price in first year of sale
- 32.00 DM
- Source of data
- Handbuch VDRG 1965/1966
- Author
- Model page created by Lars Brötje. See "Data change" for further contributors.
