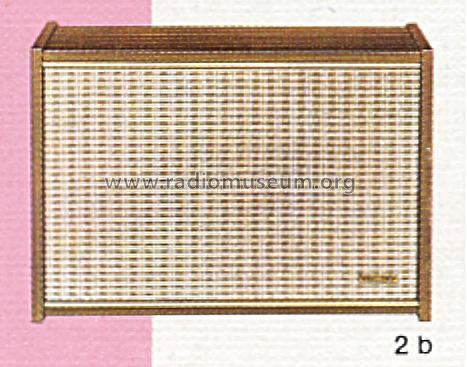

Klangstrahler 2b
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1963–1967
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 98863
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Klangstrahler 2b - Grundig Radio-Vertrieb, RVF,
- Dimensions (WHD)
- 290 x 190 x 120 mm / 11.4 x 7.5 x 4.7 inch
- Notes
- Impedanz 5 Ohm, Frequenzbereich 80 Hz bis 8 kHz, Lsp. 212 × 152 mm, Varianten: mitteldunkel hochglanz, Nussbaum natur mattiert, Rüster mattiert.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 52.00 DM
- Source of data
- Handbuch VDRG 1963/1964
- Author
- Model page created by Lars Brötje. See "Data change" for further contributors.
