• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24862

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

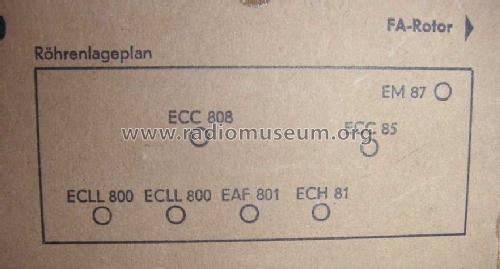

• ECC85 ECH81 EAF801 ECC808 EM87 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Kombinierter Rundfunkempfangsteil HF30 - Grundig Radio-Vertrieb, RVF,

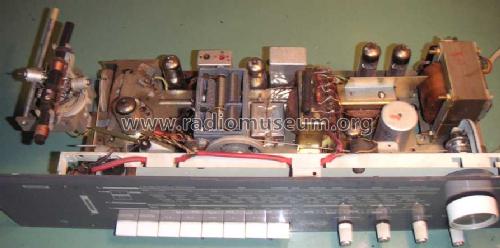

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 550 x 150 x 190 mm / 21.7 x 5.9 x 7.5 inch

• Notes
• Dreh- und abschaltbare Ferritantenne; Stereo-Decoder nachrüstbar; NF-Verstärker mit 2 Endstufen je 8 W.
  Wurde in Transportkiste geliefert.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 399.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
