• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21143

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

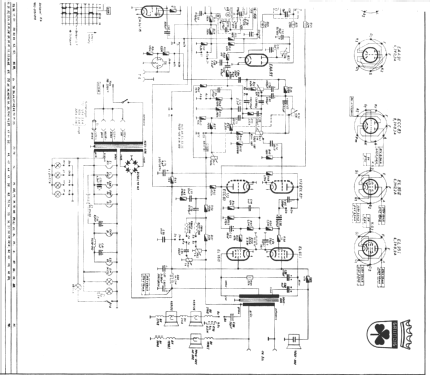

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EAA91 EM34 or EM35 ECC83 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Konzertgerät 5088 [Nussbaum, natur] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 400 x 290 mm / 26.4 x 15.7 x 11.4 inch

• Notes
• drehbare Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 16.9 kg / 37 lb 3.6 oz (37.225 lb)

• Price in first year of sale
• 456.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58
