• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21277

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EBF89 EAA91 EM34 or EM35 EC92 ECC83 EL95 EL95

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

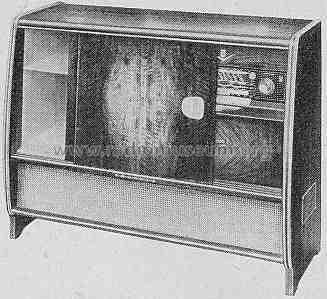

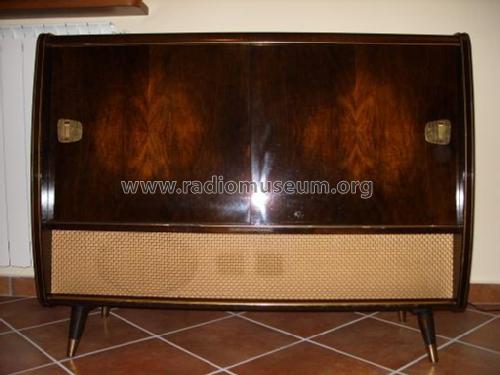

• Model: Konzertschrank 8068 [natur] - Grundig Radio-Vertrieb, RVF,

• Shape

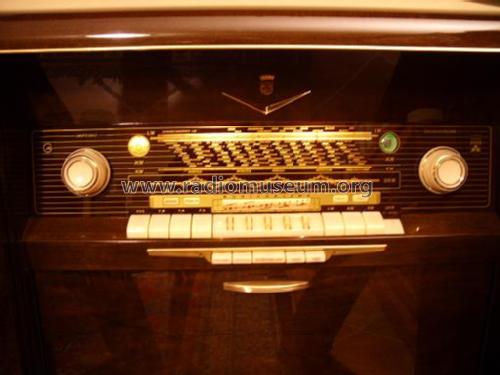

• Console with Push Buttons.

• Dimensions (WHD)
• 1170 x 850 x 440 mm / 46.1 x 33.5 x 17.3 inch

• Notes
• Phono-Chassis = De Luxe PE10.

• Net weight (2.2 lb = 1 kg)
• 57 kg / 125 lb 8.8 oz (125.551 lb)

• Price in first year of sale
• 968.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58
