• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21294

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

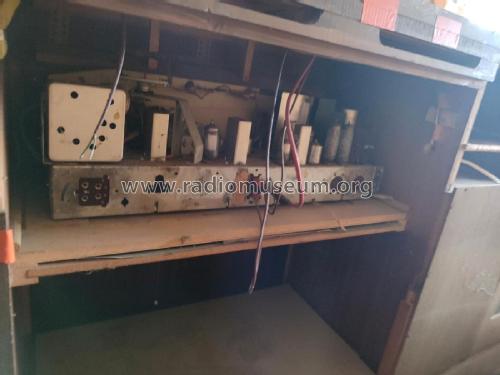

• ECC85 ECH81 EF89 EF80 EM34 or EM35 EAA91 EBC41 ECC83 EC92 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 9 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer + Tape Recorder; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

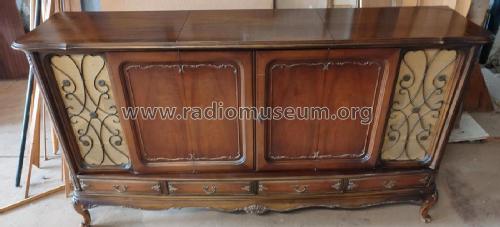

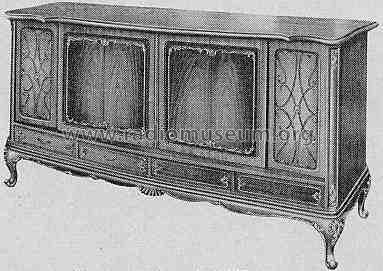

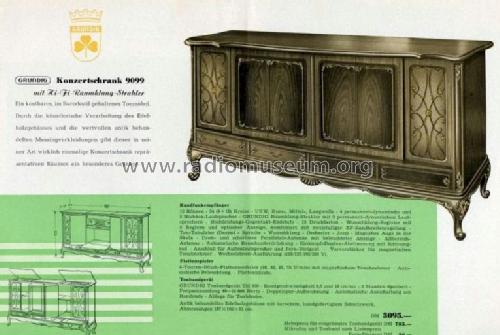

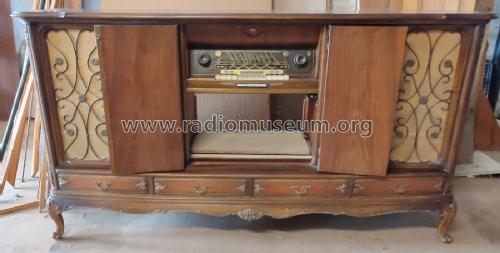

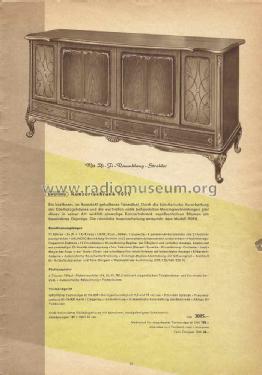

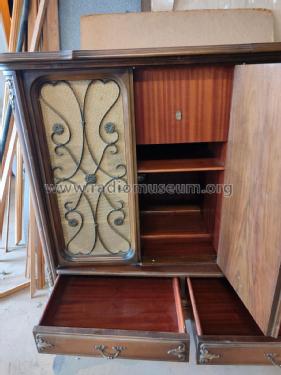

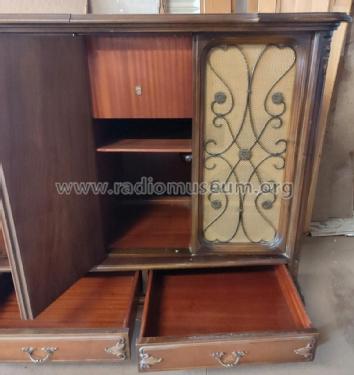

• Model: Konzertschrank 9099 - Grundig Radio-Vertrieb, RVF,

• Shape

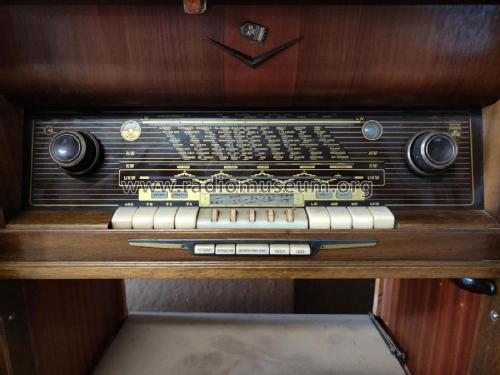

• Console with Push Buttons.

• Dimensions (WHD)
• 1740 x 960 x 500 mm / 68.5 x 37.8 x 19.7 inch

• Notes

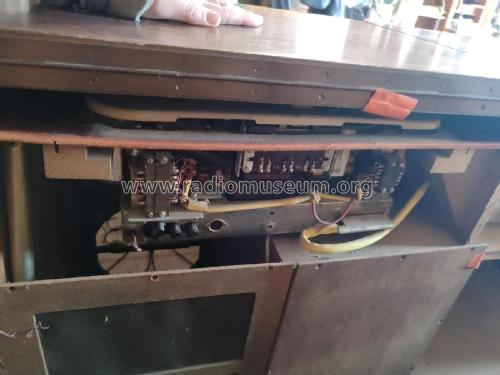

• Phono-Chassis = De Luxe M, P7000;

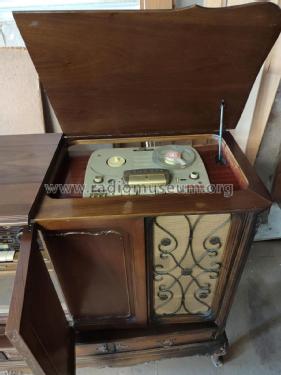

  Tonband-Chassis (Aufpreis 785,- DM) = TM830.
  2 der 8 LS befinden sich in einem separaten Raumklang-Strahler.

• Price in first year of sale
• 3,095.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58
