• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26018

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EM87 ECC808 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

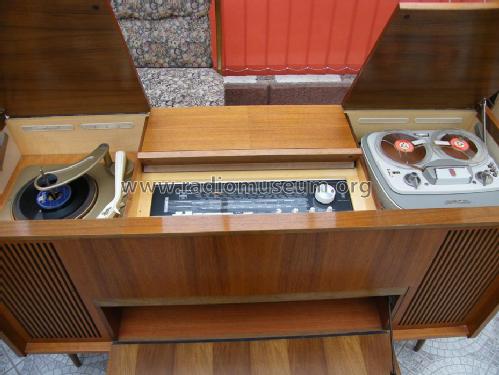

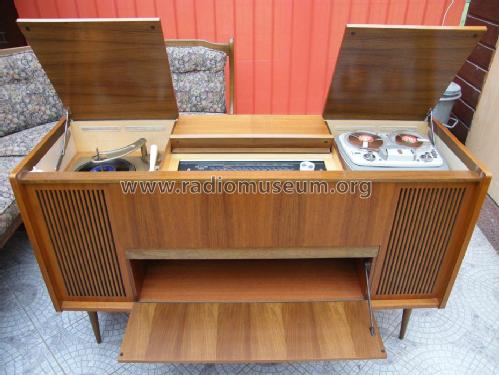

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: KS560 [Nussbaum] - Grundig Radio-Vertrieb, RVF,

• Shape

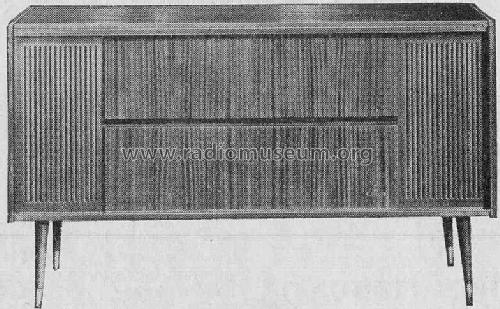

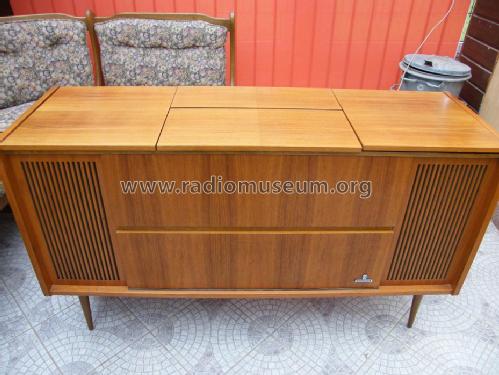

• Console with Push Buttons.

• Dimensions (WHD)
• 1350 x 810 x 450 mm / 53.1 x 31.9 x 17.7 inch

• Notes

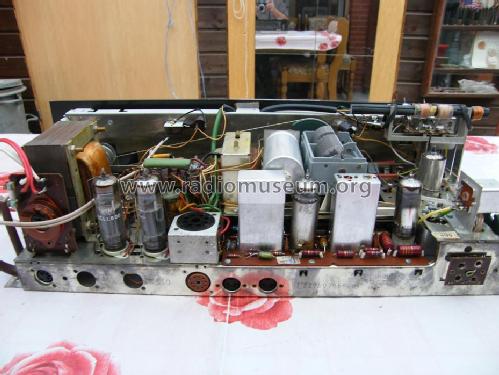

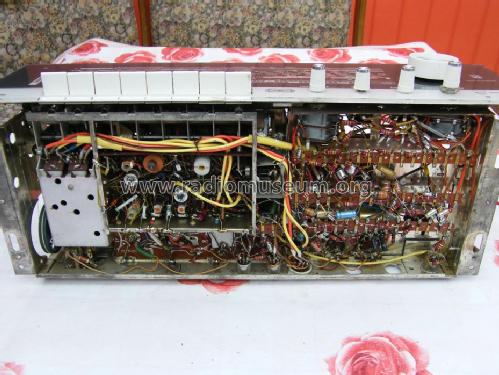

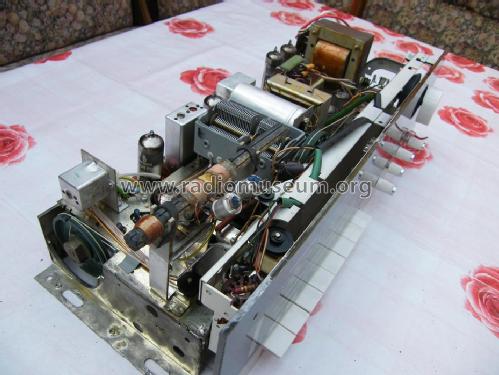

• Rundfunk-Chassis = HF35 jedoch Ferritantenne abschaltbar; Stereo-Decoder 4 oder 5 nachrüstbar, Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 7 W;
  Phono-Chassis = AG1025

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Price in first year of sale
• 1,600.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
