KS580 Ch= HF10 + NF10 poliert
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25773
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

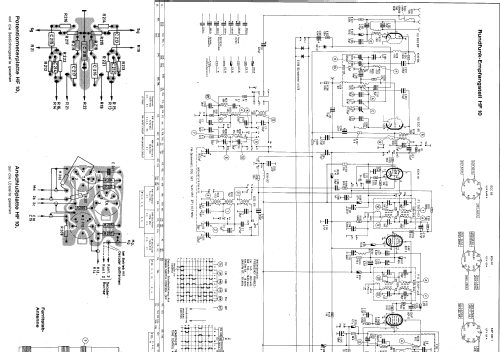

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

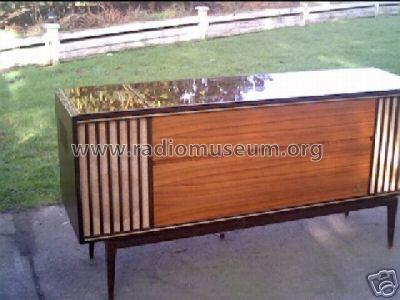

- Model: KS580 Ch= HF10 + NF10 [poliert] - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1710 x 850 x 480 mm / 67.3 x 33.5 x 18.9 inch
- Notes

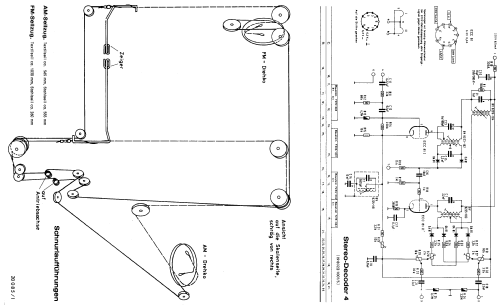

- Rundfunk-Chassis = HF10; Stereo-Decoder 4 oder 5 nachrüstbar, Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W; 10 Lautsprecher;
Phono-Chassis = Dual 1009.
- Net weight (2.2 lb = 1 kg)
- 75 kg / 165 lb 3.2 oz (165.198 lb)
- Price in first year of sale
- 2,250.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1964/1965
- Literature/Schematics (1)
- -- Original-techn. papers.
