• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26163

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

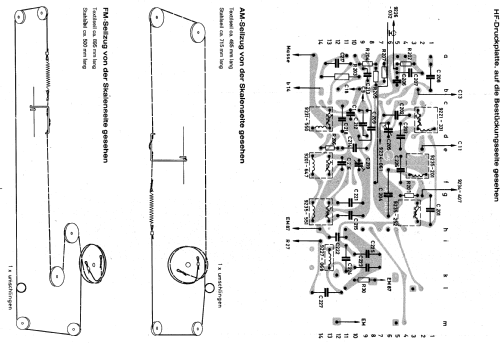

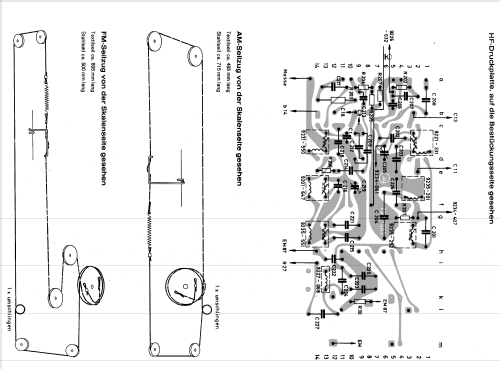

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM87 ECLL800 ECLL800

• Number of Transistors

• Semiconductors
• AA113 AA113

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: KS650 Ch= HF45 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1350 x 810 x 450 mm / 53.1 x 31.9 x 17.7 inch

• Notes
• Rundfunkchassis = HF45
  Phonochassis = Philips AG1025
  UKW Stereo-Automatic-Decoder 6 optional.

• Net weight (2.2 lb = 1 kg)
• 55 kg / 121 lb 2.3 oz (121.145 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966
