Stereo-Konzertschrank KS690 HiFi
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26167
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

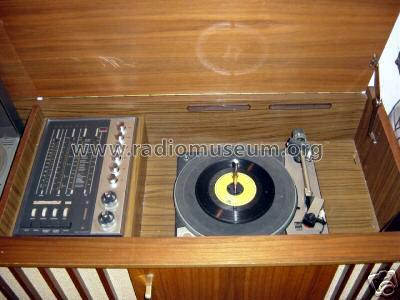

By courtesy of guest David Anfuso.
By courtesy of guest David Anfuso.
By courtesy of guest David Anfuso.
By courtesy of guest David Anfuso.
By courtesy of guest David Anfuso.
By courtesy of guest David Anfuso.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Power out
- 17 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo-Konzertschrank KS690 HiFi - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1570 x 820 x 450 mm / 61.8 x 32.3 x 17.7 inch
- Notes
-
Der Stereo-Konzertschrank Grundig KS690 HiFi hat 12 Röhren und 12 Dioden.
Rundfunk-Chassis = HF10L und NF10; Stereo-Decoder eingebaut; Stereo-NF-Verstärker mit 2 Endstufen je 8,5 W, 8 Lautsprecher;
Phono-Chassis = Dual 1009. Der Prospekt führt 9 AM-Kreise.Technisch identisch mit dem größeren KS680, der aber 10 Lautsprecher hat.
- Net weight (2.2 lb = 1 kg)
- 85 kg / 187 lb 3.6 oz (187.225 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
- Other Models
-
Here you find 6210 models, 5438 with images and 4207 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
