• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1969–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27634

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

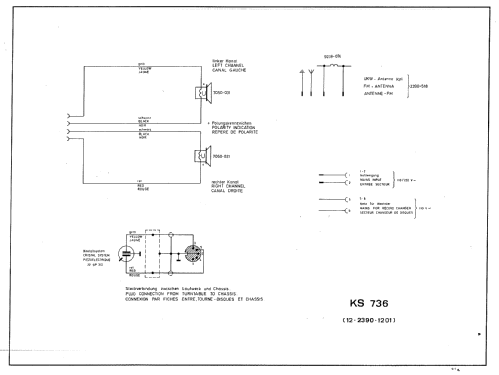

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: KS736 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1300 x 710 x 370 mm / 51.2 x 28 x 14.6 inch

• Notes
• Rundfunk-Chassis = RTV340, Stereo-Decoder 10 eingebaut, Ausgangsleistung: 2× 4 W;
  Phono-Chassis = Grundig Automatic 36 mit Kristallsystem 22GP200.
  Gehäuse: Nussbaum, natur, mattiert oder Palisander oder Schleiflack.

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1972/1973
