• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27063

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

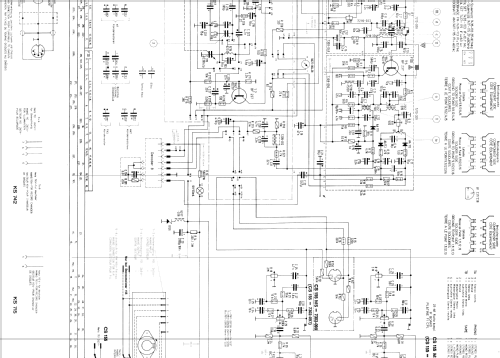

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Konzertschrank KS742 Ch= CS155MS [Plattenwechsler AG1035] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1280 x 750 x 420 mm / 50.4 x 29.5 x 16.5 inch

• Notes

• Rundfunk-Chassis = Stereomeister 155; Stereo-Decoder 8 eingebaut;
  NF-Verstärker mit 2 Endstufen je 5 W.
  Phono-Chassis = Philips AG1035 mit Kristallsystem AG3310.

  Siehe auch KS742 mit Grundig Plattenwechsler Automatic 36.

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Original-techn. papers.
