- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26538
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Front of console
Front with top open
ebay: d-187
ebay: d-187
ebay: d-187
ebay: d-187
Grundig Werbung September 1966

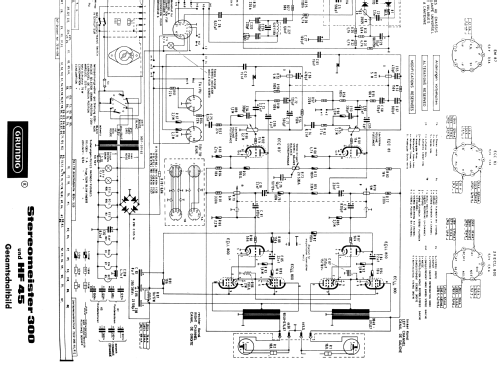

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: KS750 - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1450 x 820 x 390 mm / 57.1 x 32.3 x 15.4 inch
- Notes
-
Grundig Stereo-Konzertschrank Modell KS 750.
Dioden: 2× AA113.
Rundfunk-Chassis = HF45, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 7 W;
Phono-Chassis = Philips AG1035
Edelholzgehäuse mitteldunkel hochglanzpoliert, hell mattiert oder Teak natur
- Net weight (2.2 lb = 1 kg)
- 55 kg / 121 lb 2.3 oz (121.145 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
- Mentioned in
- -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 17)
