- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158060
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Power out
- 14 W (unknown quality)
- from Radiomuseum.org

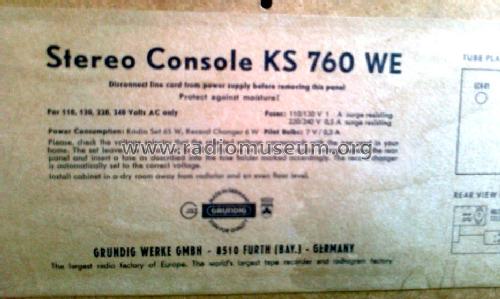

- Model: KS760WE - Grundig Radio-Vertrieb, RVF,
- Notes
- Der AM- Super KS760WE empfängt MW und 3 x KW, hat Gegentakt- Endstufen für NF- Stereofonie und basiert auf dem Chassis HF45U.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
