KS 772 WE Ch= CS 500 FET/U/WE-MS
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 274769
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

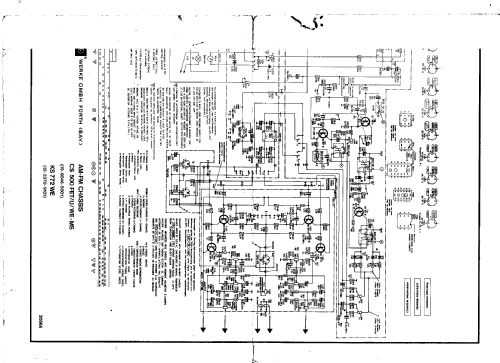

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 37
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Power out
- 20 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: KS 772 WE Ch= CS 500 FET/U/WE-MS - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1740 x 810 x 460 mm / 68.5 x 31.9 x 18.1 inch
- Notes
-
AM-FM chassis = CS 500 FET/U/WE-MS
Record changer = Dual 1011
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Amelia Pérez Oyarzun. See "Data change" for further contributors.
