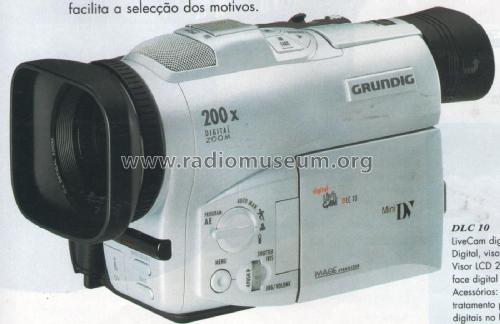

Live Cam DLC 10

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1998
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 296415
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Video-Taperecorder/-Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Live Cam DLC 10 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 81 x 106 x 205 mm / 3.2 x 4.2 x 8.1 inch
  • Notes

  • Live Cam, motorized optical-digital 17x / 200x variable speed, focal distance 3,9-66,3 mm,    light intensity 1 :1/4, minimal light 1 lux, image converter sensor ccd 680000 pixels, filter tread  43 mm, system/standard : DVC-SD, HI FI stereo, PCM 16 Bit 2 channels, digital effects, image stabilizer, time base corrector, maximum duration in standard / longplay playback 80/120 min, AE aut/recorder, aut/manual focus / full range, auto white balance, aut/manual diaphragma adjustment, data and time insertion, fade in/outimage and sound, switching 16 :9, diopter compensation display (color / 2,2 " monitor LCD, digital photo shot, mouting cut, sincho edit, high speed shutter, record rewiew /edit search, electronic tape counter /real time, indicia marking, remaining tape indication, incorporated microphone, time codig, headphones, av out, remote control.

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Mentioned in
  • Catalog Grundig 1998, Model Page 65
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
