- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75567
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Grundig Radiograms Meubles Radioconsolas

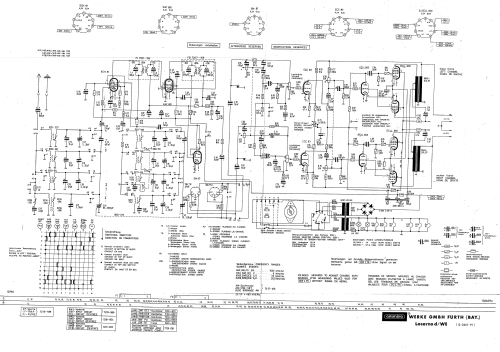

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110, 130, 220, 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 14 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Locarno 2 WE - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 780 x 820 x 360 mm / 30.7 x 32.3 x 14.2 inch
- Notes
- diode rectifier, 7 push buttons.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
