• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 293278

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF233 BF233 BF233 BF235 BF235 SFD80 1N4002 1N4002 TBA120 TBA820

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / AC: 110; 125; 160; 220 / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

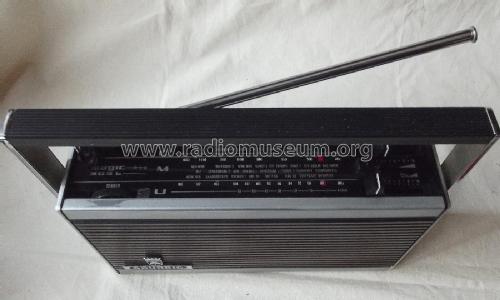

• Model: Magic-Boy 303B - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 243 x 130 x 55 mm / 9.6 x 5.1 x 2.2 inch

• Notes

• UKW: 87.5 - 108 MHz

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
