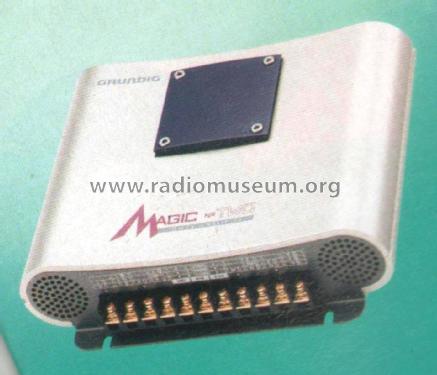

Magic No. Two

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1998
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 295451
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 500 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Magic No. Two - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 216 x 52 x 195 mm / 8.5 x 2 x 7.7 inch
  • Notes

  • Car Amplifier , tri-mode with 4,3 or 2 channels connectables, nominal power : 4X70 W or 2X70 W+1X250 W or 2X250 W (bridge), golden links.

  • Mentioned in
  • Catalog Grundig 1998, Model page 131
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
