• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141242

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Majestic 1070 USA - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 340 x 210 mm / 21.7 x 13.4 x 8.3 inch

• Notes

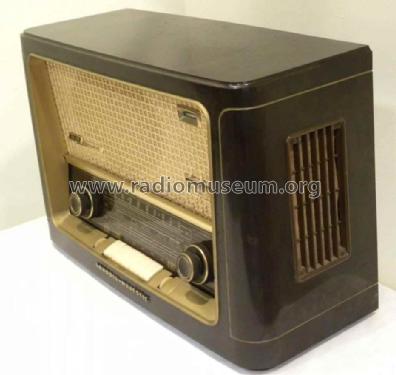

• Grundig Majestic 1070 USA, Hi-Fi Sound;
  FM up to 108 MHz, SW: ~5.9 - 15.8 MHz, bass & treble control, voice & music equalizer button.
  See also the domestic version Musikgerät 1070 with different wave bands.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Motorola Service Manual

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 8)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 6208 models, 5434 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
