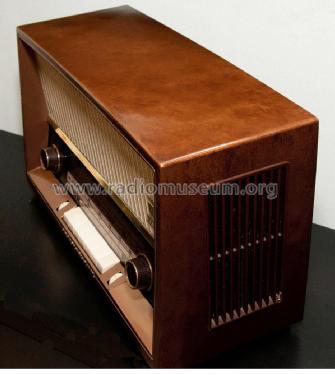

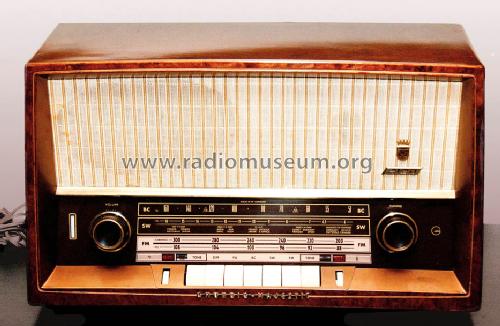

Majestic 2120U
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 234526
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115-220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Majestic 2120U - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 19.5 x 12 x 7.5 inch / 495 x 305 x 191 mm
- Notes
-
Grundig Majestic 2120U is an export model for the Northamerican market.
BC band with C-D marks indicating the frequencies for Civil Defense (Conelrad).See also the domestic model Musikgerät 2120.
- Author
- Model page created by William Strik. See "Data change" for further contributors.
