• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82425

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EF80 EM84 EABC80 EBC81 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

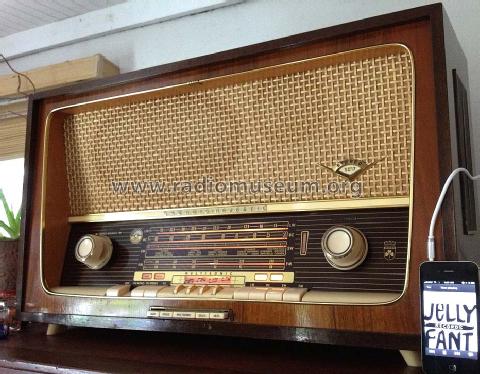

• Model: Majestic 5017U Stereo - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 400 x 280 mm / 26.4 x 15.7 x 11 inch

• Notes
• The Grundig Majestic model 5017U Stereo imported by Majestic International Sales has the FM bandwidth from 88-108 MHz, in addition to the LW bandwidth of 135-350 kHz.

• Literature/Schematics (1)

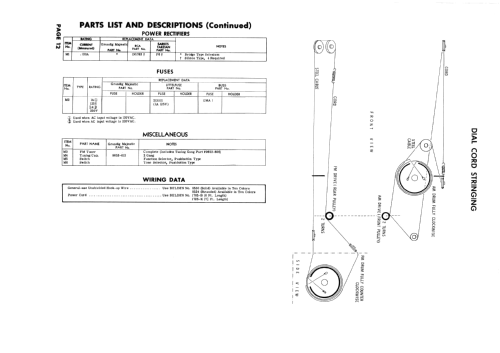

• Photofact Folder, Howard W. SAMS (11-61, Set 556, Folder 9)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
