Majestic Musical Instrument 8090 WF/3D
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286441
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

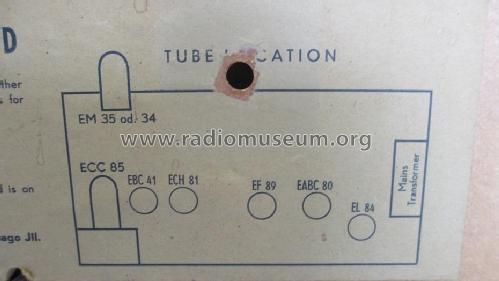

- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; Export model
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 160; 220 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Majestic Musical Instrument 8090 WF/3D - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Notes
-
Majestic Musical Instrument 8090 WF/3D is an export model for the U.S.A.
SW1: 5.85 ... 13 MHz
SW2: 13 ... 23 MHz
FM: 88 ... 108 MHzBC band with CD-marks indicating the frequencies for Civil Defense transmissions.
Please refer to the forums article Conelrad: Radio meets the Civil Defense.Built-in audio preamplifier with tube EBC41 for record player equipped with a magnetic pick-up.
Compare with the domestic model Musikschrank 8090WF/3D and the export model Musical Instrument 8090WFE/3D without FM reception.
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
