Majestic Stereo Console SO112PX
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118160
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- Semiconductors
- B250C150
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

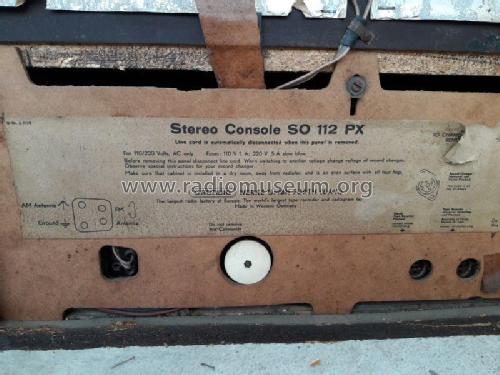

- Model: Majestic Stereo Console SO112PX - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 43.25 x 29.25 x 13.75 inch / 1099 x 743 x 349 mm
- Notes
-
Export model sold in PX stores.
SW: 5.9 - 16 Mc.See also domestic model Stereo-Konzertschrank SO112 and US version Majestic Stereo Console SO112US.
- Literature/Schematics (1)

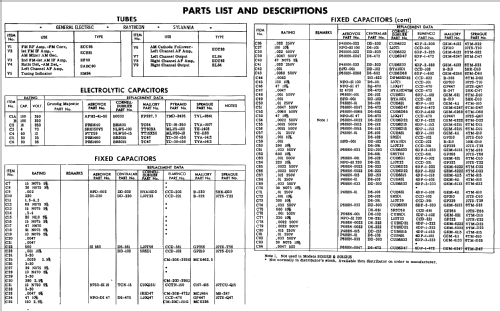

- Photofact Folder, Howard W. SAMS (Set 545, Folder 8)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
- Other Models
-
Here you find 6208 models, 5434 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Majestic Stereo Console is part of the collections of the following members.
Forum contributions about this model: Grundig Radio-: Majestic Stereo Console SO112PX
Threads: 1 | Posts: 10
I am new to radio restoration . I have 4 Grundig radio's and want to keep looking for these to collect. The sound of these are amazing. I have some understanding that they need some repairs to keep them alive and working for years to come. I have already replaced the electrolytic capacitors on my SO 112 US and need further guidance on replacing whatever it may take to upgrade the rest of it. I have a schematic, thanks to Radiomuseum and I have some knowledge on what it takes to do good workmanship. I am an appliance technician and the only thing in common with appliance's and radio's is the electricity. I have alot to learn and need a little direction. I have at my disposal a gentleman who has been fixing radio's, mainly in the 1910 to 1930's era. Thanks to all
Dave Brown, 30.Dec.07
