• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321098

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 ECC83 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• B250C150

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Majestic Stereo Console SO112US - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 43.25 x 29.25 x 13.75 inch / 1099 x 743 x 349 mm

• Notes

• Export model for the US.
  Record changer = Grundig TW501G

  See also domestic model Stereo-Konzertschrank SO112 and PX version Majestic SO112PX.

• Mentioned in

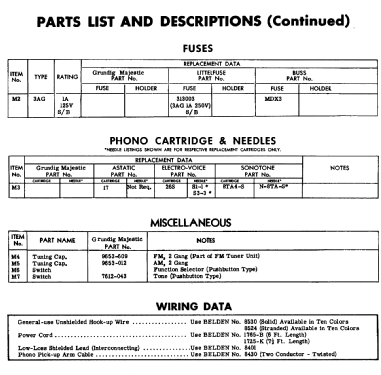

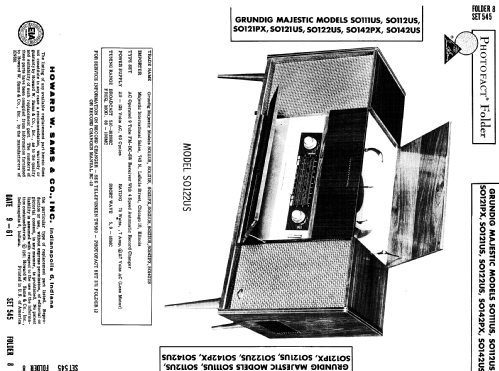

• Photofact Folder, Howard W. SAMS (Set 545, Folder 8)

• Literature/Schematics (1)
• -- Original prospect or advert
