Majestic TK8E
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 180550
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Sams Photofact Folders reference picture.

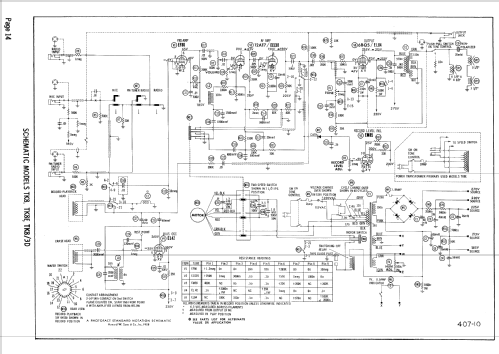

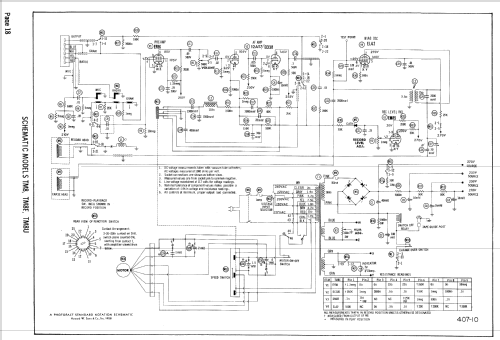

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Majestic TK8E - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Supplied by:
Majestic International Sales Corporation, 743 West La Salle Street, Chicago 10, Illinois
- Literature/Schematics (1)

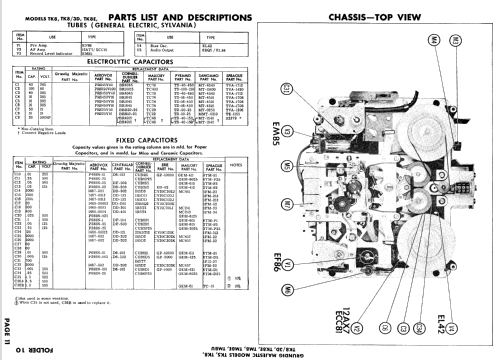

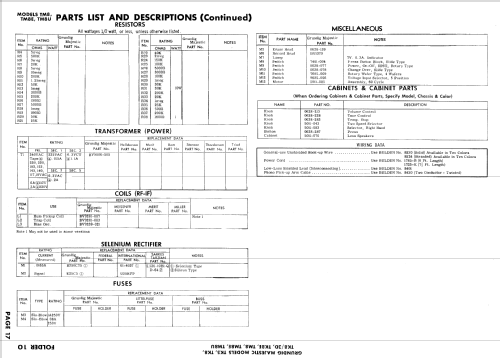

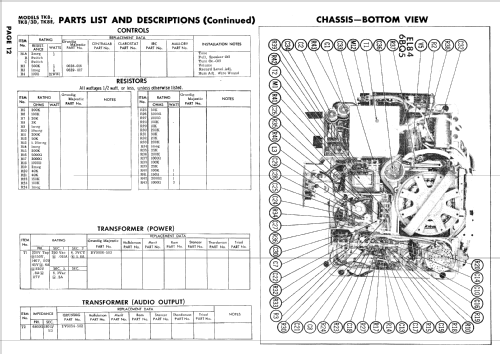

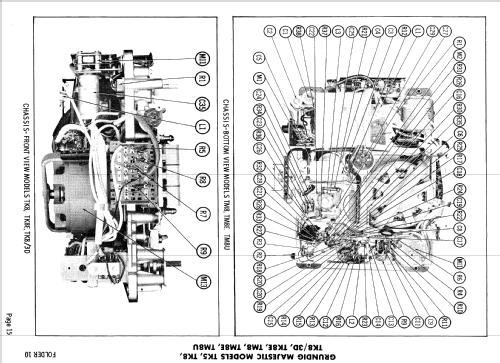

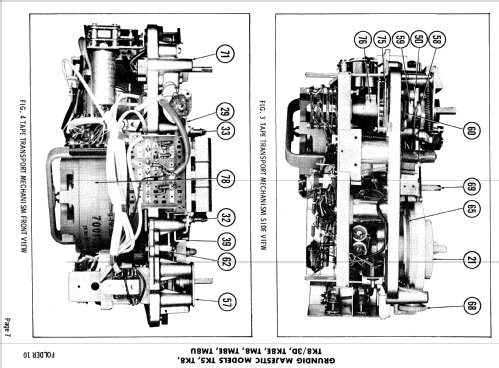

- Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
