Stereo Console Mandello Solid State 3/U Ch= CS155U/MS
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 210940
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

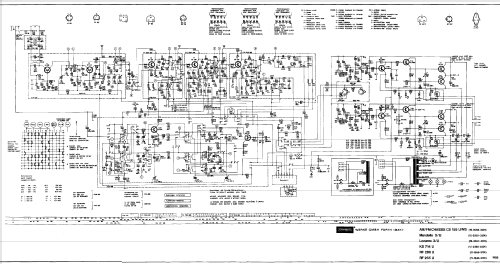

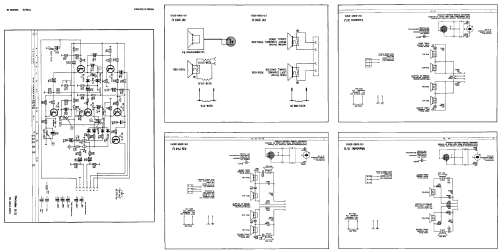

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 21
- Semiconductors
- AF106 BF243 BF237 BF238 BF237 BF194 BF237 BC149 BC108 AD161 AD162 BC149 BC108 AD161 AD162 BC147 BC147 BC147 BC148 BC148 BC147
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Console Mandello Solid State 3/U Ch= CS155U/MS - Grundig Radio-Vertrieb, RVF,

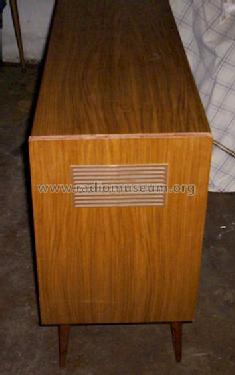

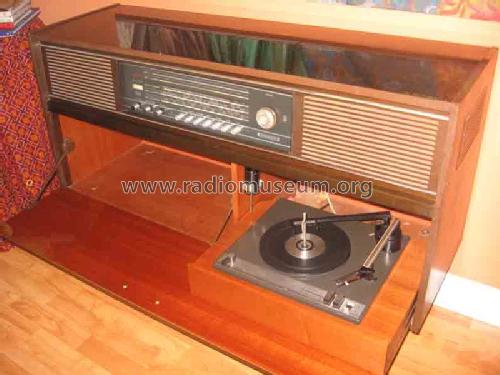

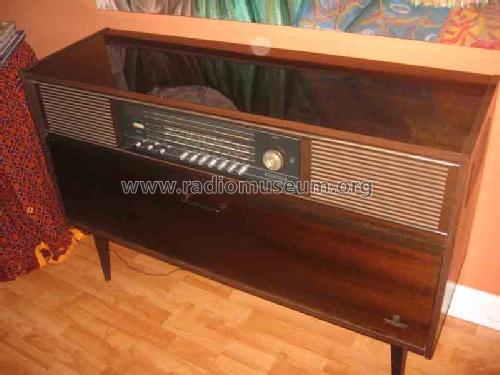

- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 48 x 14.25 x 31 inch / 1219 x 362 x 787 mm
- Notes
- US export model.
Receiver chassis: CS 155 U/MS

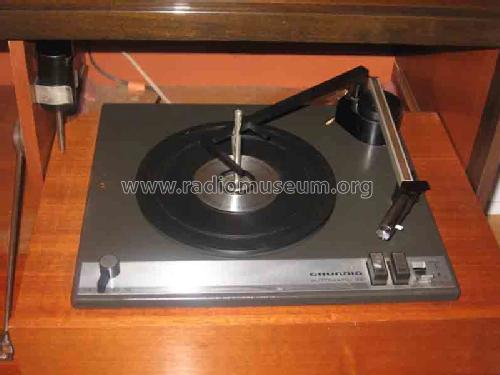

Record changer: Grundig Automatic 36
FM Stereo Decoder 8/U built in.
- Net weight (2.2 lb = 1 kg)
- 85 lb (85 lb 0 oz) / 38.590 kg
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Oscar Herrera. See "Data change" for further contributors.
