Mandello 7/GB Ch=HF45
Grundig Ltd., London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Grundig Ltd., London
- Year
- 1965/1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347600
- Number of Tubes
- 7
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 460 /10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 14 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

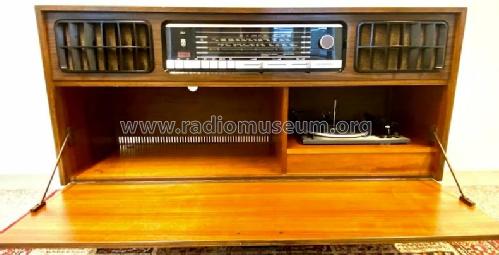

- Model: Mandello 7/GB Ch=HF45 - Grundig Ltd., London
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1180 x 793 x 385 mm / 46.5 x 31.2 x 15.2 inch
- Notes
-
UK version of the Mandello C/St.
Radio chassis HF45.
Record changer AG1025.
- Net weight (2.2 lb = 1 kg)
- 36 kg / 79 lb 4.7 oz (79.295 lb)
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
