• Year
  • 1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118134
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

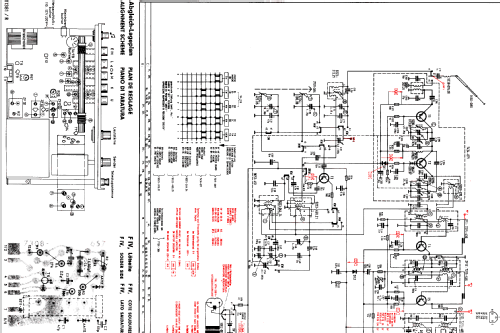

Click on the schematic thumbnail to request the schematic as a free document.

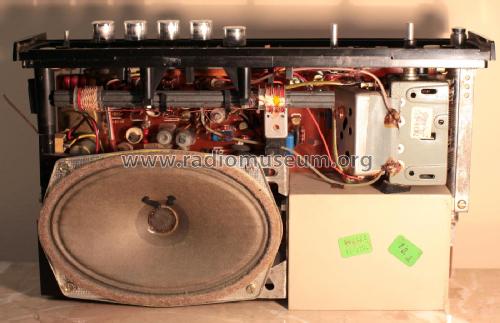

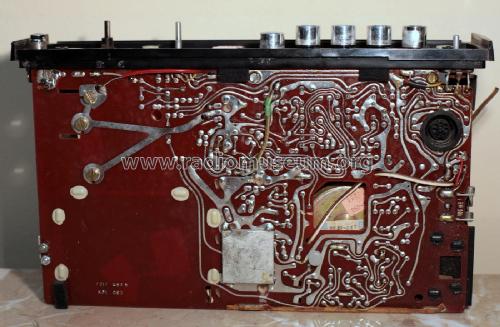

 Technical Specifications

  • Number of Transistors
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110-117; 220 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org

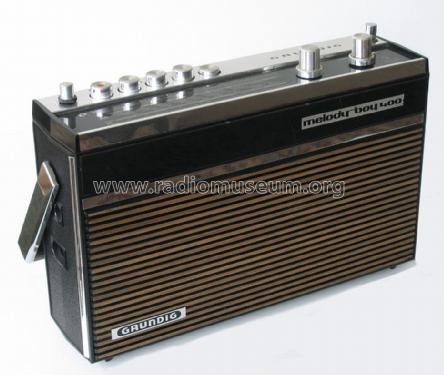

  • Model: Melody-Boy 400 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Pius Steiner. See "Data change" for further contributors.
