- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1992 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 203154
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

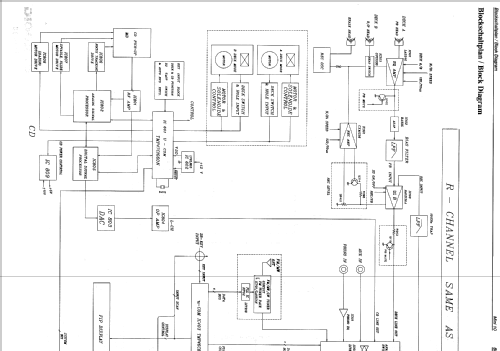

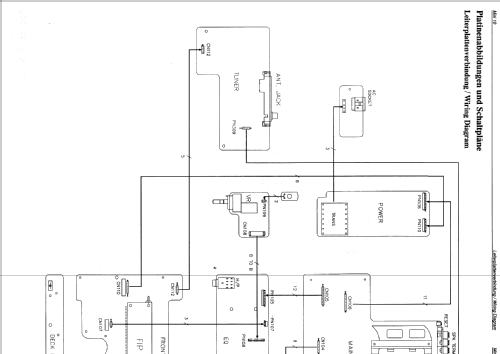

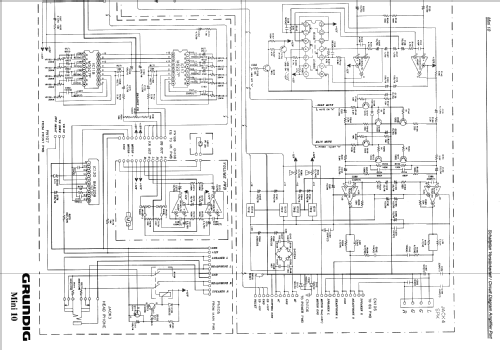

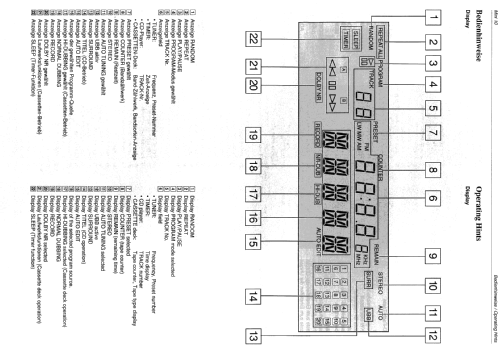

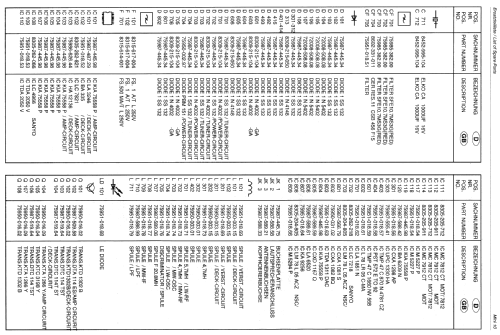

Bild aus Grundig Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220-230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Mini10 - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Notes
- Mini 10 mit Doppel-Deck und CD Player, Fernbedienung RC 10, Musikleistung 2x 35 Watt an 6 Ohm Frequenzbereich von 20- 20000 Hz.
- Mentioned in
- Original Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
