• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 2006 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234903

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / AAA: 2 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

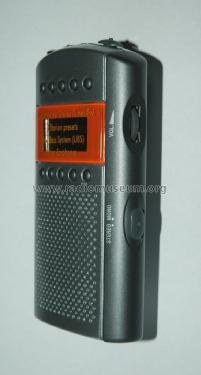

• Model: Mini Boy 62 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 105 x 23 mm / 2.4 x 4.1 x 0.9 inch

• Notes

• 10 station presets, UBS, stereo earphones.

  The name Mini Boy 62 appears only at the instruction leaflet, but not at the model itself nor it's box.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
