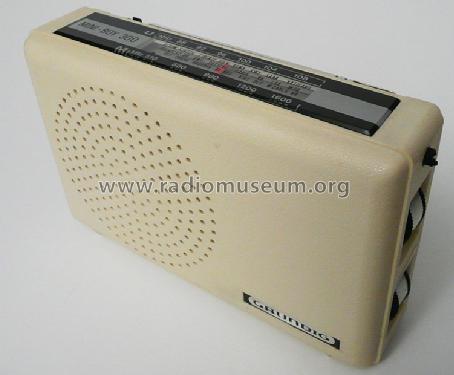

Mini-Boy 300

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1972–1978

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
28913

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

Mini-Boy 300; Grundig Radio- (ID = 184842) Radio — Grundig Radio- Mini-Boy 300 (3)

Mini-Boy 300; Grundig Radio- (ID = 185050) Radio — Grundig Radio- Mini-Boy 300 (3)

Mini-Boy 300; Grundig Radio- (ID = 650829) Radio — Grundig Radio- Mini-Boy 300 (3)

Mini-Boy 300; Grundig Radio- (ID = 2067151) Radio — Grundig Radio- Mini-Boy 300 (3)

Mini-Boy 300; Grundig Radio- (ID = 3041707) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 3041708) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 344868) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 47833) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 319958) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 47831) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 140880) Radio — Grundig Radio- Mini-Boy 300 (2)

Mini-Boy 300; Grundig Radio- (ID = 140881) Radio — Grundig Radio- Mini-Boy 300 (2)

Mini-Boy 300; Grundig Radio- (ID = 319957) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 344869) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 370295) Radio — Grundig Radio- Mini-Boy 300 (2)

Mini-Boy 300; Grundig Radio- (ID = 606254) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 606255) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 606256) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 606257) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 606258) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 750606) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 827050) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 898686) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1035706) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1035707) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1102522) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1102523) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1102524) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1118025) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1305336) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1468035) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1468036) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1468037) Radio — Grundig Radio- Mini-Boy 300 (1)

Mini-Boy 300; Grundig Radio- (ID = 1468038) Radio — Grundig Radio- Mini-Boy 300 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
2SA101 2SB185 2SB187 2SC380 2SC380 2SC380 2SC394 2SC537 2SC785 2SD187

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Tuned circuits
5 AM circuit(s) 7 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Dry Batteries / 4×1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.25 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Mini-Boy 300 - Grundig Radio-Vertrieb, RVF,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
150 x 100 x 40 mm / 5.9 x 3.9 x 1.6 inch

Notes
Gehäusefarben: schwarz, weiss oder rot.

Net weight (2.2 lb = 1 kg)
0.390 kg / 0 lb 13.7 oz (0.859 lb)

External source of data
Erb

Source of data
Handbuch VDRG 1972/1973
