Mini World 100PE
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1998 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233367
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

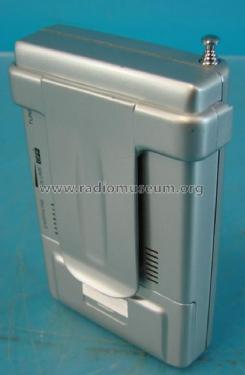

By courtesy of EBAY Seller: aboauto
By courtesy of EBAY Seller: aboauto
By courtesy of EBAY Seller: aboauto
By courtesy of EBAY Seller: aboauto
By courtesy of EBAY Seller: kkbane
By courtesy of EBAY Seller: kkbane
Grundig Mini-World 100PE front view
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Mini World 100PE - Grundig Radio-Vertrieb, RVF,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3 x 4 x 1 inch / 76 x 102 x 25 mm
- Notes
-
Grundig Pocket AM/FM/Shortwave Radio Model Mini World 100 PE.
Frequency Range: FM 88 -108 MHz, AM 530 - 1710 kHz.
SW Band: 16m, 19m, 25m, 31m, 41m, 49m.
Pull Up antenna, Belt Clip.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
