Monitor BG 32
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 287816
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

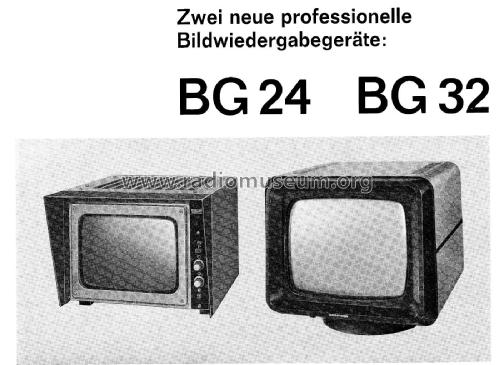

Artikel in Grundig TI 1/1975 Seite 509
- Number of Tubes
- 1
- Valves / Tubes
- M31-131W
- Number of Transistors
- 24
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Monitor BG 32 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 354 x 269 x 345 mm / 13.9 x 10.6 x 13.6 inch
- Notes
-
Monitor (Bildwiedergabegerät); 90°Monitorröhre, Abtastnormen umschaltbar:
525 Zeilen (V-Freq. 60 Hz/ H-Freq. 15750 Hz)
625 Zeilen (V-Freq. 50 Hz/ H-Freq. 15625 Hz)
735 Zeilen (V-Freq. 60 Hz/ H-Freq. 22050 Hz)
875 Zeilen (V-Freq. 50 Hz/ H-Freq. 21875 Hz)Bandbreite Videoverstärker >12MHz
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Mentioned in
- - - Manufacturers Literature (Grundig Technische Informationen 1/1975)
- Author
- Model page created by Michael Mehnert. See "Data change" for further contributors.
