- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1980/1981
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223333
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Transistors
- Semiconductors present.
- Semiconductors
- BF961 BF441 BF440 BF241 BC337 BC547 BC548 BC549 BC550 BC557 BC558 BC559 BC560 BD135 BD437 BDW93 BDW94 TDA1047 TCA4510 TBA221 TCA720 BB204 BA124 BAV19 AA112 1N60 1N4148 BZ102/1V4 ZF3,3 ZPD15 B40C3700/2200
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

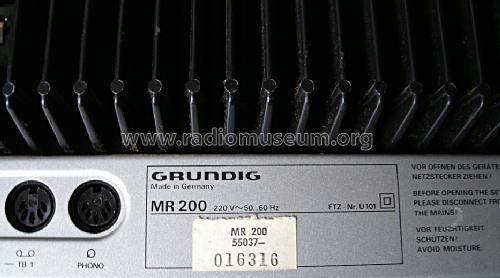

- Model: MR 200 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 270 x 115 x 240 mm / 10.6 x 4.5 x 9.4 inch
- Notes
-
Halbleiter teils mehrfch vorhanden
UKW 87,5...108 MHz
MW 510...1620 kHz
LW 150...320 kHZ
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
