- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186995
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
By courtesy of guest D. Jordan Berson, USA.
By courtesy of guest D. Jordan Berson, USA.
By courtesy of guest D. Jordan Berson, USA.
By courtesy of guest D. Jordan Berson, USA.

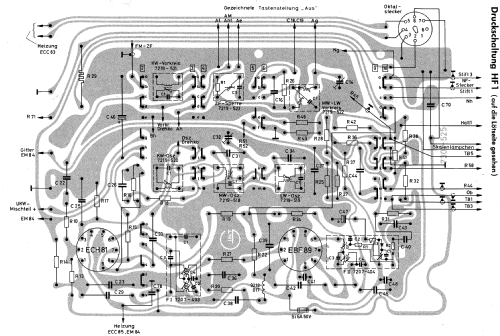

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: MS50a U/S - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1190 x 810 x 420 mm / 46.9 x 31.9 x 16.5 inch
- Notes

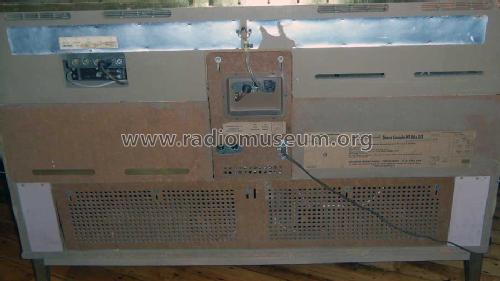

- The Grundig console model MS50a U/S was sold with a record changer but the set has a compartment and space for an additional tape recorder from Grundig. Probably most customers ordered with such a tape recorder. This evidence can also be seen on the sticker which lists a power consumption for the radio and stereo amplifier of 75 watts plus 12 watts for the record changer. Instead of the "Long Waves" of the domestic version, this export version of MS50a has the "Marine Band" (just "above" the broadcast band).
- Net weight (2.2 lb = 1 kg)
- 50 kg / 110 lb 2.1 oz (110.132 lb)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
