• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161068

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EBF89 EAA91 EM34 or EM35 EC92 ECC83 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; Export model

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

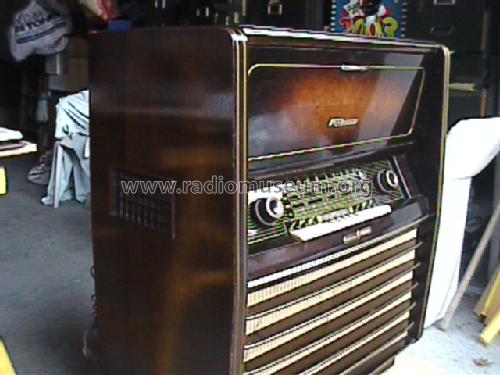

• Model: Majestic Musical Instrument 8050/USA - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 720 x 850 x 400 mm / 28.3 x 33.5 x 15.7 inch

• Notes

• Similar to Grundig Musikschrank 8050, but with BC, 2×SW and FM.
  The Grundig Musical Instrument 8050/USA was sold by Majestic International Corporation, New York, NY and Chicago, ILL.
  It has a "multisonic tone control" with 5 wheels - on each side flanced by 4 push buttons.
  Phono-chassis = similar to Perpetuum-Ebner Rex A - but it is marked Perpetuum Ebner Rex 4A and has on the bottom a PE10 cartridge.

• Net weight (2.2 lb = 1 kg)
• 48 kg / 105 lb 11.6 oz (105.727 lb)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
