• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21674

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

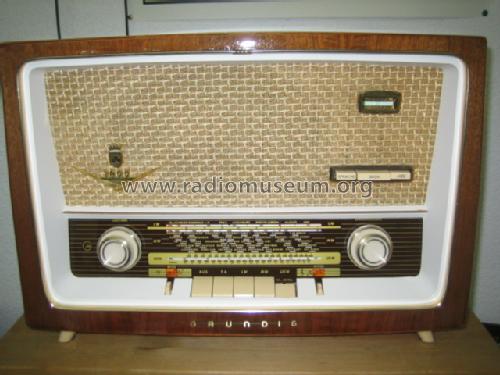

• Model: Musikgerät 1099 [Nussbaum, natur] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 470 x 330 x 220 mm / 18.5 x 13 x 8.7 inch

• Notes
• Nussbaum, natur

• Net weight (2.2 lb = 1 kg)
• 9.6 kg / 21 lb 2.3 oz (21.145 lb)

• Price in first year of sale
• 266.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
