• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24283

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM87 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

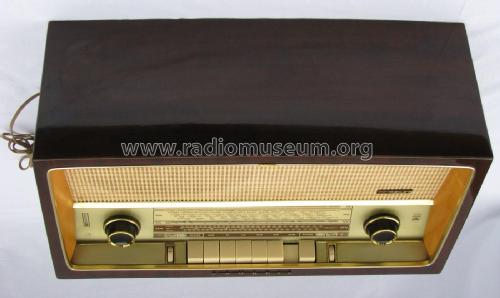

• Model: Musikgerät 2360 [hochglanz] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 320 x 220 mm / 21.3 x 12.6 x 8.7 inch

• Notes
• Edelholz, mitteldunkel hochglanzpoliert

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 349.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
