• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22084

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC85 EBF89 ECL82

• Number of Transistors

• Semiconductors
• RL233 B250C60

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

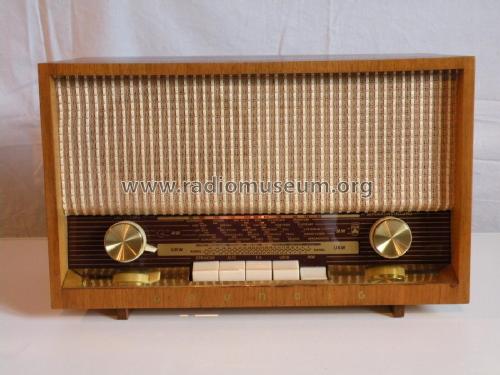

• Model: Musikgerät 92 [Rüster] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 210 x 155 mm / 13.4 x 8.3 x 6.1 inch

• Notes

• Selen-Gleichrichter B250C60K4

  UKW-Vorstufe wird als 1.ZF Stufe in Reflexschaltung verwendet.
  Bei AM additive Triodenmischung mit ECC85.

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Price in first year of sale
• 169.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 6208 models, 5434 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
