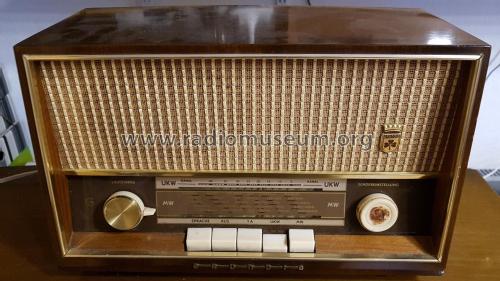

Musikgerät 96 Nussbaum

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23759

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC85 EBF89 ECL86

• Number of Transistors

• Semiconductors
• RL233 RL233 B250C60

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musikgerät 96 [Nussbaum] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 338 x 216 x 157 mm / 13.3 x 8.5 x 6.2 inch

• Notes
• Technische Daten wie Musikgerät 92M, jedoch anderes Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 196.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62
