Musikgerät 96M

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24277

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

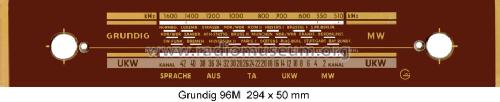

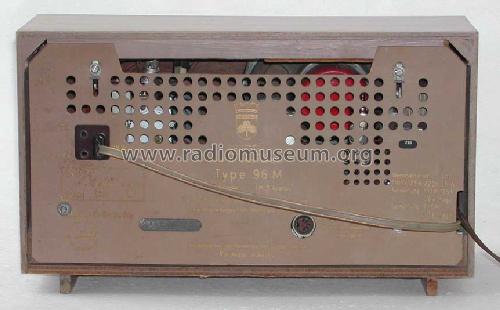

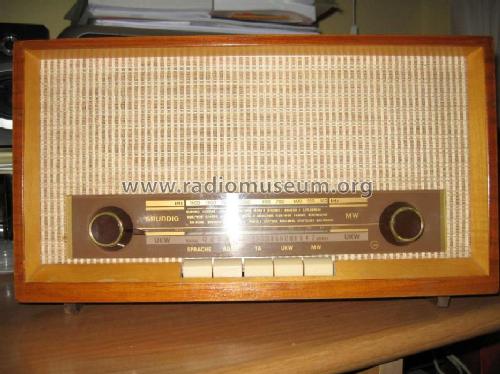

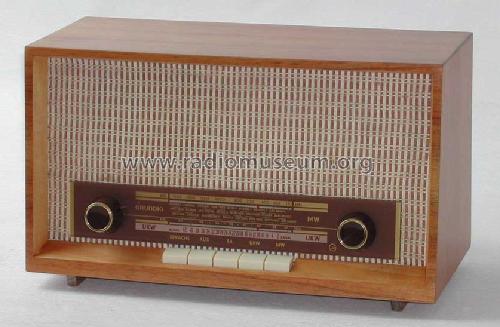

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC85 EBF89 ECL86

• Number of Transistors

• Semiconductors
• RL233 RL233

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musikgerät 96M - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 215 x 155 mm / 14.2 x 8.5 x 6.1 inch

• Notes
• Edelholz, mitteldunkel hochglanzpoliert, oder Nußbaum, natur mattiert, oder Rüster, mattiert, oder Teak, natur geölt.
  Preis für Nußbaum, Rüster oder Teak DM 233,-.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 229.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
