Musikgerät RF117a Ch= CS61
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1970–1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28246
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

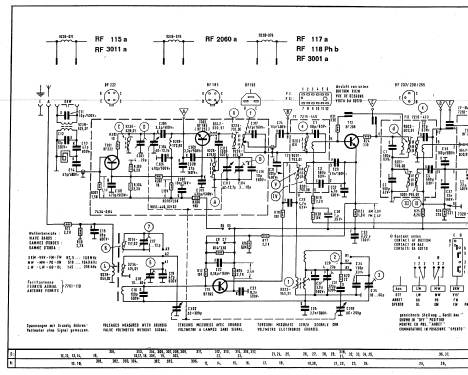

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- BF222 BF185 or. BF255 BF195 BF238 BF237 BC148 BC181 AC117 AC187 AC188 AA116 AA116 1N60 5522 B30C300
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musikgerät RF117a Ch= CS61 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 150 x 190 mm / 22.8 x 5.9 x 7.5 inch
- Notes
-
Gehäuse mitteldunkel poliert oder hell mattiert.
Siehe auch das Vorgängermodell RF117 mit 11 Transistoren.
Im VDRG-Handbuch 1970/71 wird das Gerät ohne "a" geführt.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1970/1971
- Literature/Schematics (1)
- -- Schematic
- Literature/Schematics (2)
- -- Original-techn. papers. (RF117a und CS61, ETL-Liste 10.1970)
