• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120942

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

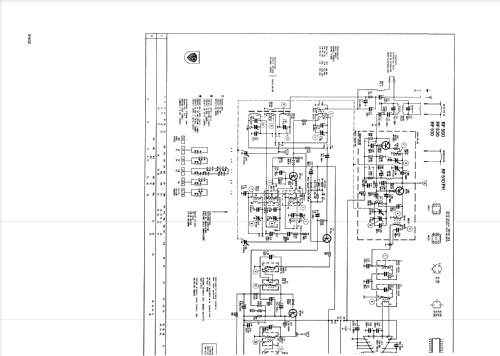

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF222 or. BF200 BF241 BF255 BF254 BF240 BF241 BC238 BC238 BC328 AC187 AC188 AD156 1N60 BZX83 TBA480 B30C400

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

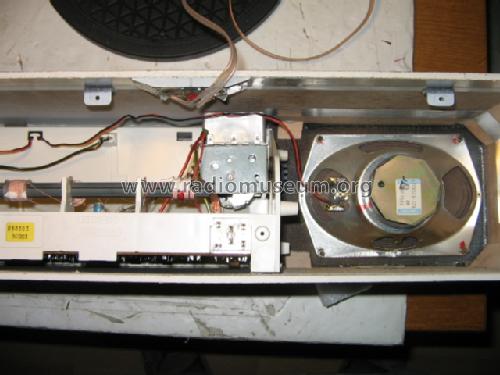

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

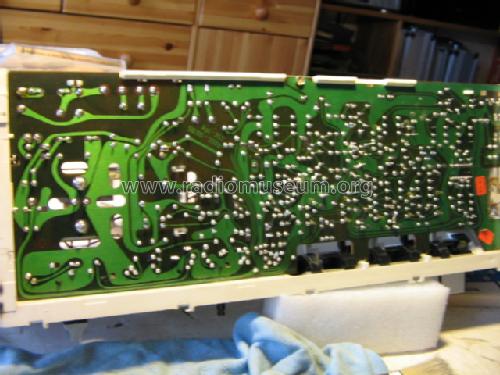

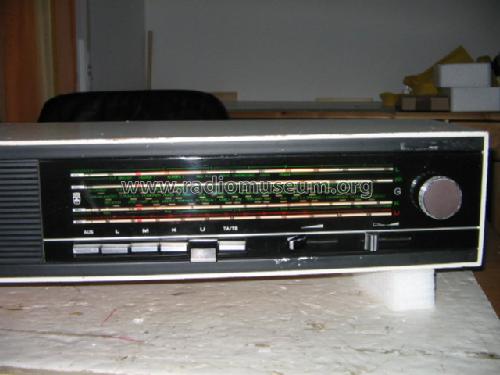

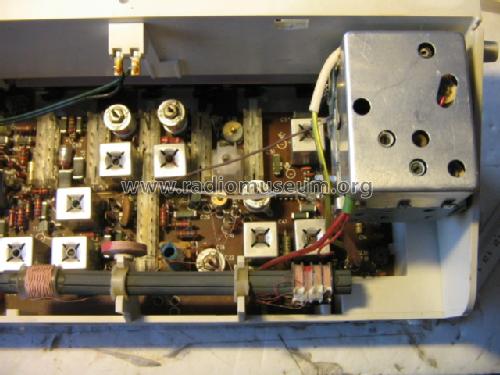

• Model: Musikgerät RF530 Ch= RC200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 130 x 160 mm / 23.6 x 5.1 x 6.3 inch

• Notes
• 1 IC: TBA480 2 Ausführungen: Holz oder weiß lackiert.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• Handbuch VDRG 1973/1974

• Literature/Schematics (1)

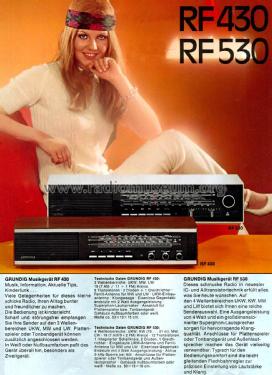

• -- Original-techn. papers. (Großer Katalog Gebr.Weiler 1973/74)

• Literature/Schematics (2)

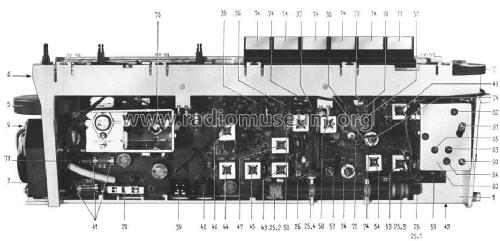

• -- Original-techn. papers. (Grundchassis RC200)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
