• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1960

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102920

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EL156 EF804 ECF80 5651 5651

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

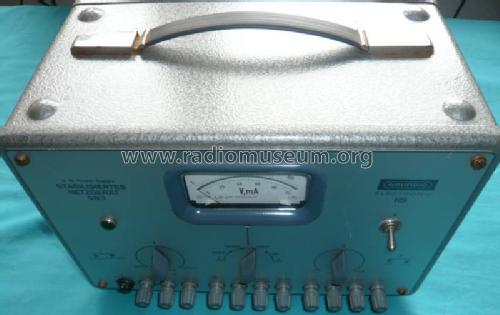

• Model: Netzgerät SN3 - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 300 x 215 x 190 mm / 11.8 x 8.5 x 7.5 inch

• Notes
• Stabilisiertes Netzgerät.
  Gleichspannung 1: 80 bis 350 V, max. 100 mA;
  Gleichspannung 2: Gittervorspannung: 0 bis -10 V;
  Gittervorspannung: 0 bis -35 V;
  Heizspannungen: 4/6,3/9/12,6/24 V.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 9,570.00 BFr

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
